SPECIFICATIONS

Language Translator Earbuds 150 Languages Two-way Real-time Translation Instant Voice Translator for Travel Learning Business

BT version: V5.4

 Charging Port: Type-c

 Color: White/Black

Features 1: Wireless BT Earphones- Music Headphones- Wireless Headphones

 3 in 1 Translator Headphones- four-mode scenes within the app are free

 Input Language & output languages.  Spanish,Chinese,Arabic,Russian,French,Korean,Portuguese,Japanese,Italian,English

Item type: Translator Earbuds

 Language Translator Earbuds 150 Languages Two-way Real-time Translation Instant Voice Translator for Travel Learning Business

Note:It's free to download the app and four modes scenes within the app are free.

Product Description

Specification

Product name: VTrans Wireless Translation Earbuds

BT version: V5.4

Model：V18

Support APP：VTrans（download for free）

Transmission range: 2402-2480MHz

Supported protocol: HSP/HFP/A2DP/AVRCP

Battery capacity: 50mAh

Charging current: about 40mA

Transmission frequency: 2.4GHz

Frequency response range: 20HZ-20KHZ

Charging time: about 1.5 hours

Product impedance :16Ω±15%

Sensitivity: 118dB+/-3@1kHz

Call time: About 6 hours

Music time: about 8 hours (50% volume)

Stand-by time: about 1 year

Working distance: about 10m

Charging voltage/current: 5V / 1A(standard environment)

Product operating temperature: -10℃~+45℃

Product storage temperature: -20℃~+65℃

Size: about 49.48*33.6*13.5mm

Answer the call: Single Click

Hang up: Double click

Call rejection: Press for 1S

Play/Pause: Double click

Next: Triple click

Voice assistant: Press for 2S

Charging Case Parameter

Battery capacity: 400mAh

Charging case product size: about 68*63*27mm

Charging port: Type-C

Battery life : about 3-4 times

Charging voltage/current: 5V / 1A

Operating temperature: -10℃~+45℃

Charging time: about 1.5 hours

Storage temperature: -20℃~+65℃

Product Listing

Translator Earphone*2

Charging case *1

Charging cable *1

Instruction manual *1

VTrans download and instructions for use

1.Please scan the QR code with your mobile phone or tablet to download and install VTrans(download software free and the four modes scene features within the app are free).

2.Open the APP, click "Connect" on the right side to enter the BT settings of the phone, and find your BT and pair it, and

then return to the VTrans main interface after paired. (Please ignore this step if you have connected this earphones before).

3.VTrans provides three translation modes with different application scenarios

A: Simultaneous Mode (one person wears one earphone): Select the language, click the start talking button. The device will automatically recognize the language of both parties, and broadcast it after translation.

B: Speaker Mode (mobile phone to earphone): First, set the corresponding languages,double-click the earphone touch area and speak, and the mobile phone displays the translation result and broadcasts it; Tap the phone to start talking, The headphones broadcast the translation result.

C: Touch mode (one person wears one earphone), both parties wear headphones, and select the corresponding language. Double-click the touch area of the earphone to start speaking, and the voice will be automatically recognized after the end, and the headset will broadcast the translation result.

4. "My" module:

Set the system language Operation instructions of the APP

Basic settings and function selection.

Operation Instruction

Power on

1.Open the charging case, and the earphones will turn on automatically.

2.Touch for 3 seconds to power on

IOS and Android systems connect the earphones

Turn on the BT of the mobile phone, search VTrans for the BT device. For the first time, you need to manually connect the device.

Power Off

1.Put it in the charging case to turn off

2.Press and hold for 6 seconds to turn off

Power on for 3 minutes without connection, and automatically turn off.

Master-slave switch

left and right earbuds can be connected to the phone at will, switch freely, and connect in seconds after powering on.

Factory reset

Put the earphones into the charging case and keep the case open, hold the left/right earphones touch area for 8 seconds. The Orange light will flash for 3 seconds and then factory reset.

Note:It's free to download the app and four modes scenes within the app are free.

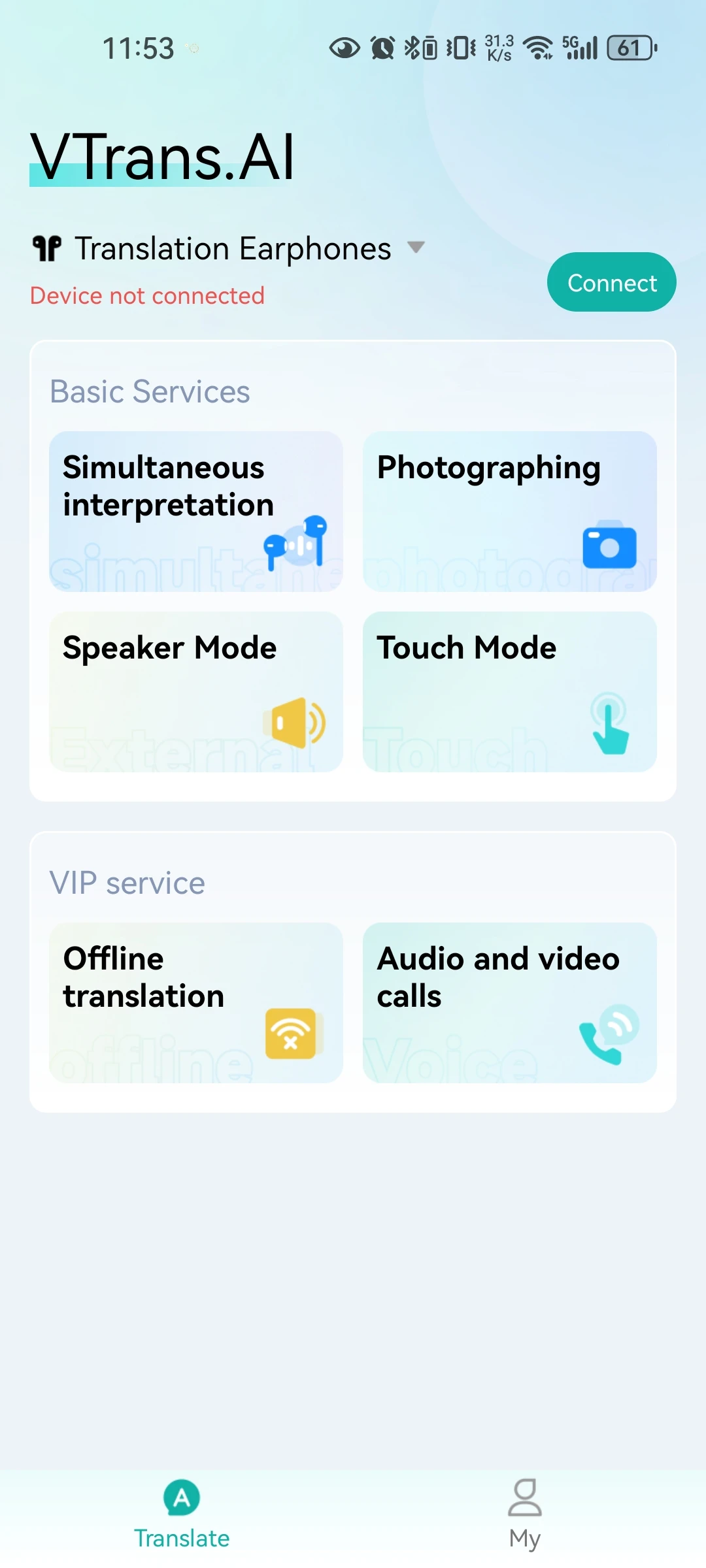

Four modes are supported for free within the app:

1.Simultaneous Interpretation Mode

2.Speaker Mode

3.Touch Mode

4.Photo Translation Mode

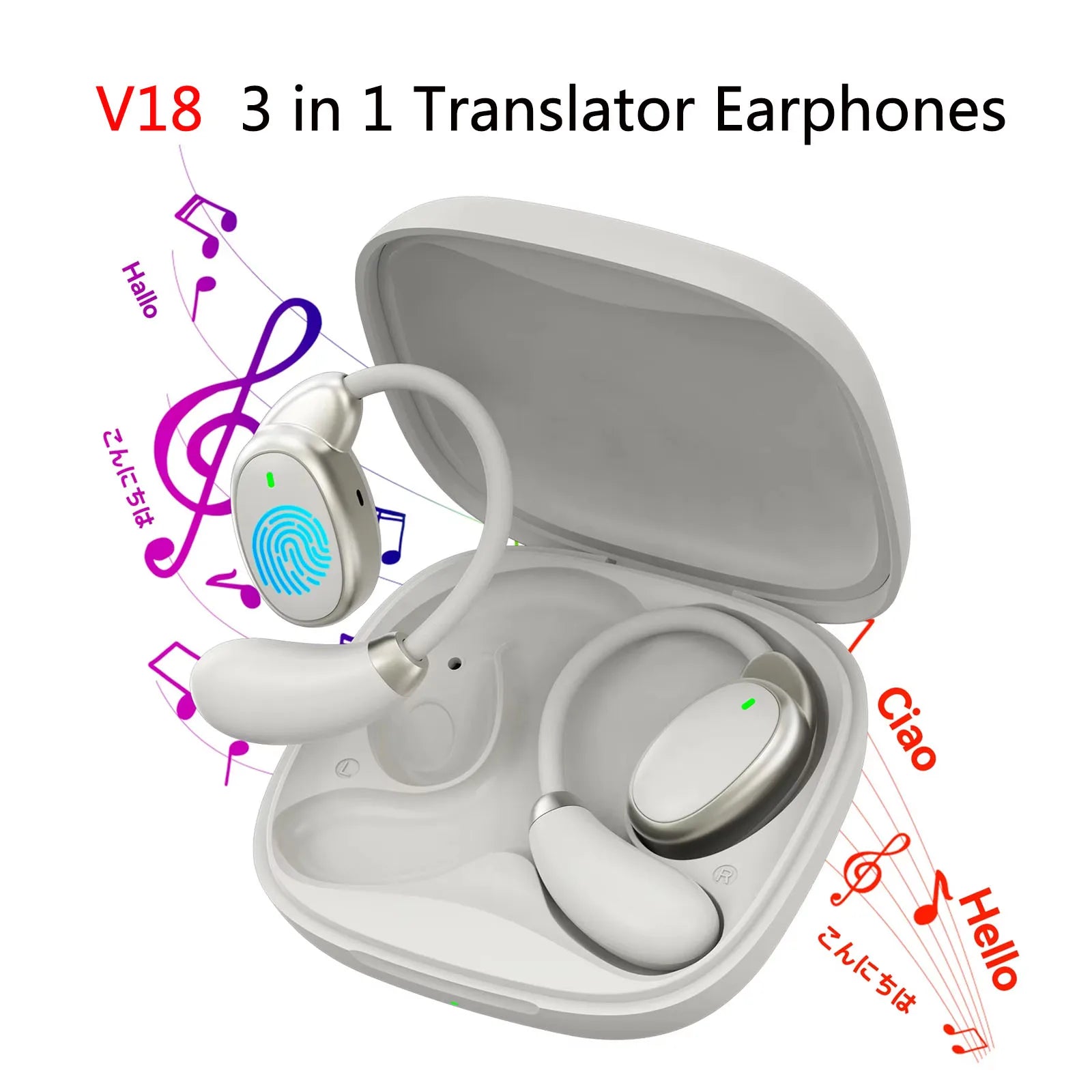

V18 Translation Earbuds

3 in 1 Wireless Earbuds：support 150 Languages Translation/Playing Music/Calls

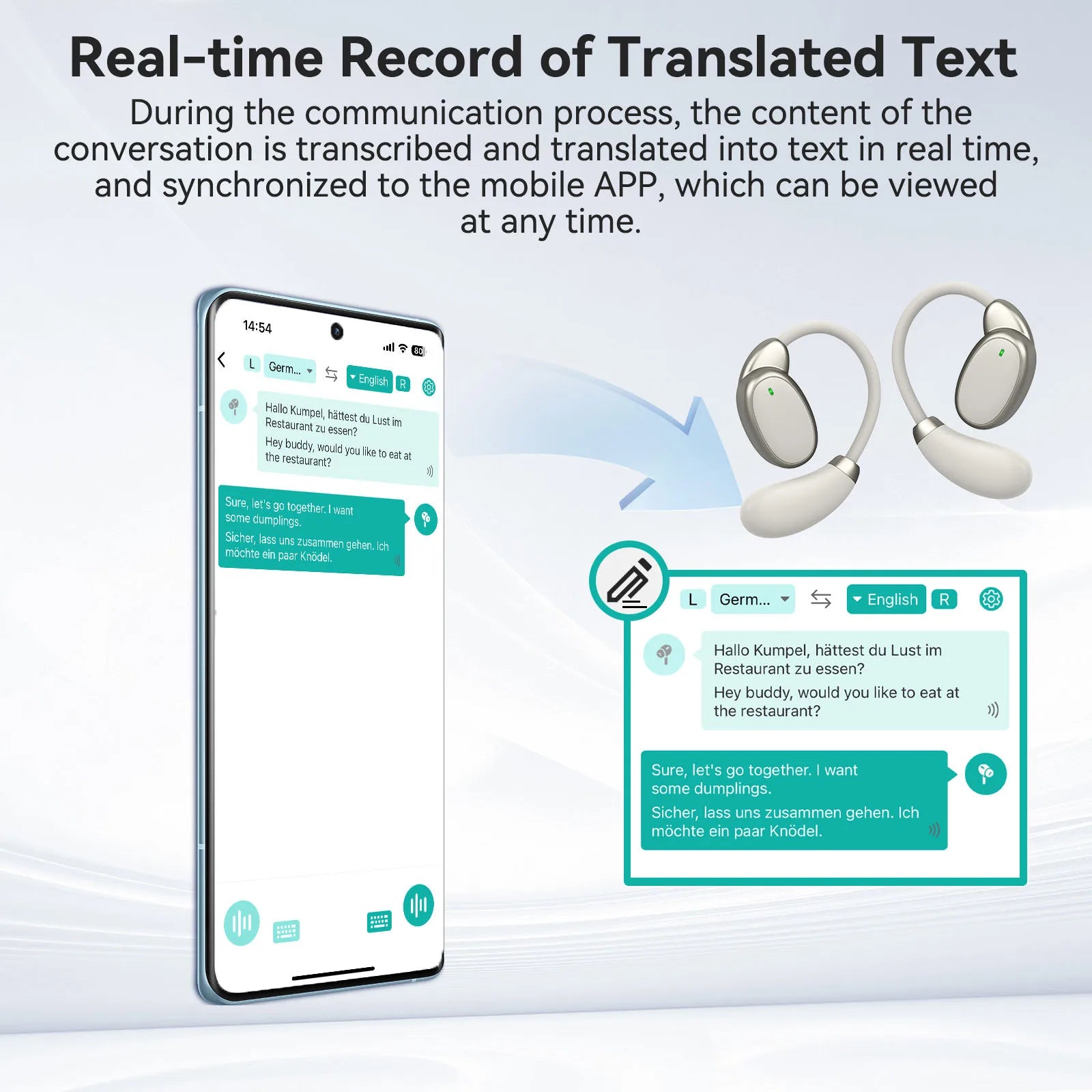

Real-time Record of Translated Text

During the communication process,the content of the conversation is transcribed and translated into text in real time,and synchronized to the mobile APP,which can be viewed at any time.

Advanced Bluetooth 5.4 technology
Has faster and more stablesignal transmission,and successfully achieved non-disruptivelowlatency.

Spatial Sound & Gold Standard Sound Quality.
HiFi Dolby spatial sound,bring you to feel the vocals and drums to feel the surging passion.

Four-modes are supported for free within the app:

1.Simultaneous Interpretation Mode

2.Speaker Mode

3.Touch Mode

4.Photo Translation ModeSafety Guidelines

1.Please follow the instructions in this manual, do not disassemble or modify the device for any reason, otherwise it may cause the earphones to malfunction or burn.

2.Do not infiltrate the product into any liquid or water to rinse the product.

3.Do not use a charger other than the rated current and voltage of the headset.

(5V/1A) to charge the headset, otherwise It is easy to cause damage to the earphones battery (please use the matching charging cable to charge the earphones).

4.Please use and store this product in a normal temperature environment, do not place the device in an environment where the temperature is too low or too high(below 0 or above 45°).

5.Do not block the openings of the headset, such as the charging port, indicator light and microphone, etc.

6.Please avoid using headphones at excessive volume or for too long to avoiddizziness or damage to hearing.

7.Do not use the device under thunderstorm weather, which may cause the device to work abnormally and the signal to be interrupted.
